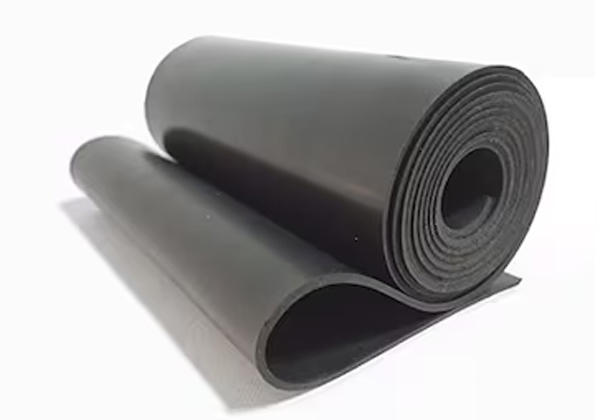

Diaphragm rubber sheets refers to a specific type of material made from nitrile rubber with 1
ply or 2 ply Nylon Fabric Insertion used as Diaphragms for Oil, LPG and solvent resistant
applications.
Diaphragm rubber sheet is widely used in oil & Fuel resistance gaskets and sealings. They
can withstand oil exposure making them suitable for applications in chemical processing and
related industries.
Nitrile diaphragm sheets are known for their flexibility and resilience. They can undergo
repeated stretching and flexing without losing their physical properties, ensuring
long-lasting performance. Diaphragm sheet can withstand Temperature from -40°C to 120°C,
depending on the specific grade and formulation.
| DIAPHRAGM RUBBER SHEETS WITH 1 PLY NYLON INSERTION | |||||||
|---|---|---|---|---|---|---|---|
| Code | Colour | Specific Gravity | Hardness (±5) | Tensile Strength | Elongation | Polymer content | Finish Type |
| Gm/cm3 | SHORE A | Kg/cm2(min) | % (min) | ||||
| DS60120 | Black | 1.2 | 60 | 100 | 300 | 100% | Smooth |
| DS70140 | Black | 1.4 | 70 | 100 | 300 | 100% | Smooth |
| Standard Length | 10 Mtr | 33 Ft | 11 Yard |
| Standard Width | 1.2/1.4/1.5/2 Mtr | 4/4.6/4.92/6.56 Ft | 1.33/1.53/1.64/2.18 Yard |
RFL Dipped Nylon 6, 150 GSM
Breaking StrengthWarp - 150 kgs/5 CM, Weft - 135 Kgs/5 CM
Note1. One side or both side smooth or fabric finish can be supplied.
2. Specifications are subject to change without notice.
